Constructing an Egg Candler

Objective

To construct an egg candler for detecting embryonic development or for separating shell eggs.



For Wooden Candler

Materials



Procedure



  1. Cut four pieces 8 inches long from the 1 by 6 board.



  2. Drill a 1 inch hole in one of the pieces.



  3. Bevel the edge of the hole.



  4. Nail the four 8-inch pieces together as shown.



  5. Cut the remaining piece of board to fit inside the candling box as a bottom.



  6. Before nailing the bottom piece in place, screw the porcelain socket to the center of this piece.



  7. Wire socket with extension cord and then nail bottom in place.



  8. Drill a hold in back of the candler for extension cord, and wire male plug to cord after feeding the cord through the hole as shown in figure above.



  9. Nail two small cleats to the 6 3/8 inch by 6 3/8 inch plywood. This piece will act as a removable top that will be held in place by the cleats.



For "Coffee-Can" Candler

Materials




Procedure



  1. Remove one end of the can in such a way that the heavy rim of the can remains on the removed end. This will make it much easier to replace and can be done quite easily if the can opener is reversed from the usual method of end removal.



  2. Drill a hole approximately one inch in diameter in the end of the can that has been removed or in the plastic lid.



  3. Mount the porcelain socket in the inside of the can opposite the end that has been removed.



  4. Drill a small hole through this opposite end and attach the extension cord to the terminals of the socket.



  5. Screw in the light bulb.



  6. Replace the end of the can where the large hole has been drilled and tape securely or use the plastic lid that has been darkened.



  7. Hold the egg in front of the hole.

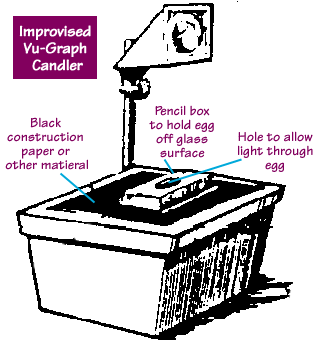

For Improvised Vu-graph Candler in the Classroom

Materials



Procedure



  1. Cut a hole approximately one inch in diameter in the center of the sheet of black construction paper or other opaque material. Place this on the glass top of the vu-graph.



  2. Cut holes in the sides of the small pencil or similar type box. This box is to hold the egg in place so the embryo can be observed by the students.



  3. Lay the egg on the box for observation of embryonic growth.

Flashlight and Black Paper Candler

Materials



Procedure



  1. Roll the 8 1/2 by 11 inch, or similar size, piece of black construction paper into a cone. Make opening at the small end of the cone approximately 1 inch in diameter.



  2. Place a flashlight in the large end of the cone, darken the room, turn on the flashlight, hold the large end of the egg at an angle to the small end of the cone examine the interior contents of the egg.
